The Combi-SC range does what it promises: it is a cost-effective and flexible container handling solution which guarantees quick ROI even for companies with relatively low throughput levels. With the Combi-SC’s ability to double stack containers in aisles as narrow as 1.6M you can make more effective use of your storage space
STRADDLE CARRIERS BY COMBILIFT
Combilift’s range of straddle carriers and mobile gantry provide safe, efficient solutions for even the most extreme load handling situations. Distribution, shipping, aerospace, steel fabricators, wind turbines and precast concrete – there’s no load too large or heavy for these workhorses.
Economical, highly manoeuvrable and fully customizable, the innovative design of our Combi SC range combines power and reliability with a lighter footprint unmatched by any comparable technology, delivering fantastic fuel efficiency and the ability to operate on poor terrain without the need for costly reinforcement.
Capacity
30 – 150 TON
Terrain
Semi-Rough Terrain
Hydrostatic Drive
Hydrostatic Drive
Narrow Aisle
Combined with a handful model

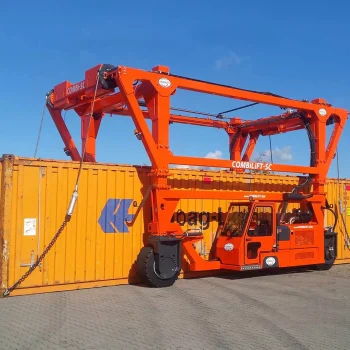

COMBI-SC3 STANDARD CHAIN
About the COMBI-SC3 STANDARD CHAIN
The Combi-SC, Straddle Carrier range is the most economical handling solution for distribution, shipping and industries with heavy and oversized loads. Its manoeuvrability, light footprint and high customisation offer complete independence when moving containers and oversized loads.
Technical Specs
Capacity: 35000
Overall Height: 5165
Overall Width: 4920 mm
Loading Area Width: 3000 mm
Loading Area Height: 4600mm
Special Features
‣ No brake maintenance
‣ Ergonomically designed /driver friendly cab
‣ Travels in/out of warehouse with ease
‣ Same Unit can lift 20’, 30’, 40’, 45’ Containers
‣ Side Shift Front & Rear
‣ 360 degree vision when load is lifted
‣ Soft Solid puncture proof tyres
Suitable Industries
‣ Containers
‣ Aluminum
‣ Concrete
‣ Logistics
‣ Steel
‣ Timber
Additional Features
‣ Highly Customisable
‣ Low ground pressure when fully loaded
‣ Easy to service
‣ Reduced fuel/energy consumption
‣ Rough Terrain & Ramp friendly – Works on compacted stone, bitument and light concrete
‣ Exceptional 3-wheel maneuverability
Video

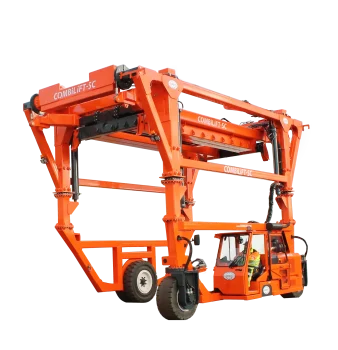

COMBI-SC3 TELESCOPIC TWIST LOCK
About the COMBI-SC3 TELESCOPIC TWIST LOCK
The Combi-SC range does what it promises: it is a cost-effective and flexible container handling solution which guarantees quick ROI even for companies with relatively low throughput levels. With the Combi-SC’s ability to double stack containers in aisles as narrow as 1.6M you can make more effective use of your storage space. Unmatched reliability, fuel efficiency and much lighter service weight ensure you can maintain maximum levels of productivity. All Combilift straddle carriers are designed to minimise service downtime. Its straightforward design incorporates standard components which are easy to source for extreme reliability and ease of maintenance wherever you are in the world.Safety is of paramount importance for Combilift when designing all its handling solutions and the Combi-SC is no exception. Its optimum centre of gravity, broad wheelbase and exceptional 3-wheel manoeuvrability mean maximum load stability. The centrally located, ground accessible cabin is designed for operator safety and comfort with 360° visibility from the cab meaning they can transport loads in confidence. The user interface is intuitive and all functions can be carried out from within the cab reducing the need for operatives to work at height, which ensures the highest levels of operator safety and productivity.
Special Features
‣ Rubber Mounted Half Open Cabin
‣ 3 Wheel Hydrostatic Drive
‣ Load Sensing Steering
‣ 4 Way Lever Positioning of Wheels
‣ Hydraulic Oil Cooler
Suitable Industries
‣ Aluminium
‣ Building Materials
‣ Logistics
‣ Metals
‣ Plastics
‣ Steel
‣ Timber
‣ Warehousing
Video
Straddle Carrier Features
THE PERFECT
CONTAINER HANDLING SOLUTION
FASTER
TURNAROUND
The Combi-SC offers unbeatable turnaround speed with safe stuffing/de-stuffing at ground level. It can lift, transport and set down 20’, 30’, 40’ and 45’ high cube containers, reefer and flat rack containers. 360˚ visibility from the driver position and 2 minute off-loading from trailer to ground mean faster loading times without the need for trailers waiting to be loaded.
RELIABLE AND FUEL EFFICIENT
Unmatched reliability, fuel efficiency and much lighter service weight ensure you can maintain maximum levels of productivity. All Combilift straddle carriers are designed to minimise service downtime. Its straightforward design incorporates standard components which are easy to source for extreme reliability and ease of maintenance wherever you are in the world.
LIGHTER FOOTPRINT
The Combi-SC’s much lighter unladen weight, at only 17 tonne compared to comparable heavy duty forklifts which can reach 80 tonne, makes it extremely fuel efficient. The low service weight and large puncture proof flotation tires greatly reduce ground pressure, enabling operation on poor and semi-rough terrain, avoiding the need for costly investment on ground resurfacing or improvement.
SUPERIOR SAFETY & EASE OF OPERATION
Safety is of paramount importance for Combilift when designing all its handling solutions and the Combi-SC is no exception. Its optimum centre of gravity, broad wheelbase and exceptional 3-wheel manoeuvrability mean maximum load stability. The centrally located, ground accessible cabin is designed for operator safety and comfort with 360° visibility from the cab meaning they can transport loads in confidence. The user interface is intuitive and all functions can be carried out from within the cab reducing the need for operatives to work at height, which ensures the highest levels of operator safety and productivity.
